A fiber optic cable becomes a pigtail

A fiber optic pigtail is a short fiber cable with a factory-terminated connector on one end and a bare fiber on the other, designed to be spliced to an incoming fiber cable for a permanent, low-loss connection.

What is a Fiber Optic Pigtail?

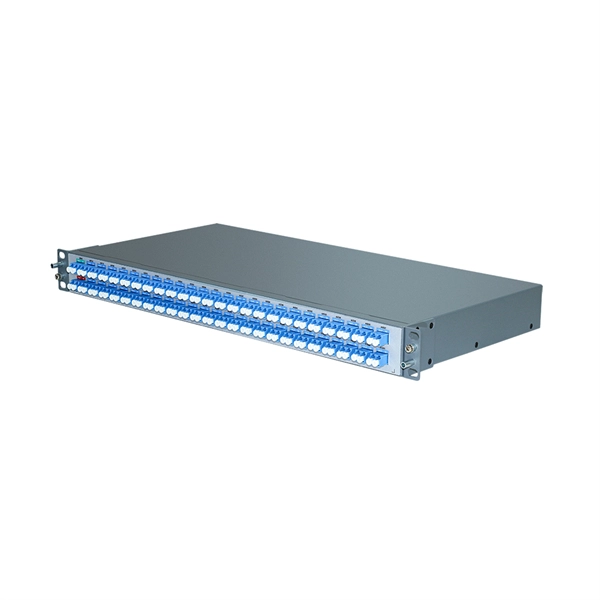

A fiber optic pigtail is a short length of optical fiber, typically 0.5 to 2 meters, with a pre-installed connector on one end and a bare fiber on the other. The connector end plugs directly into equipment, patch panels, or optical distribution frames (ODFs), while the bare fiber end is intended for fusion or mechanical splicing to the main fiber cable in the field. This design combines the precision of factory-terminated connectors with the flexibility of field splicing, ensuring reliable, low-loss connections without the need for on-site connector polishing or termination .

Why Convert a Fiber Cable into a Pigtail?

Bulk fiber cables entering a building or network often lack connectors. Simply using a patch cord is not feasible because patch cords have connectors on both ends. By converting a fiber cable into a pigtail, you create a bridge between the main fiber line and the equipment, allowing for a permanent, high-quality connection. This is especially useful in data centers, FTTH deployments, and telecom networks .

Types of Fiber Pigtails

• Single-mode pigtails: Typically use 9-micron OS1 or OS2 fibers, suitable for long-distance transmission with minimal signal loss .
• Multimode pigtails: Use 50 or 62.5-micron fibers (OM1–OM5), ideal for short to medium distances, such as within data centers .

Tools and Steps for Conversion

To convert a fiber optic cable into a pigtail, the following tools and steps are generally required:

1. Fusion Splicer: Joins the bare fiber of the pigtail to the incoming fiber using an electric arc, creating a continuous optical path .
2. Fiber Strippers: Remove the outer coating and buffer from the fiber without damaging the glass core .
3. High-Precision Cleaver: Cuts the fiber at a perfect 90-degree angle for optimal splicing .
4. Cleaning Supplies: Lint-free wipes and 99% isopropyl alcohol to remove dust and oils .
5. Splice Protection Sleeves: Protect the fragile junction after splicing . The process involves stripping the fiber, cleaving it, cleaning it, and then fusing it to the bare end of the pigtail. Once spliced, the connector end of the pigtail can be plugged into the network equipment, providing a factory-grade connection with minimal signal loss .

Advantages of Using Pigtails

• High reliability: Factory-terminated connectors ensure consistent performance.
• Time-saving: Eliminates the need for field polishing and connector installation.
• Flexibility: Can be spliced to any fiber cable type or length.
• Low-loss connections: Fusion splicing minimizes signal attenuation . By converting fiber optic cables into pigtails, network installers achieve efficient, durable, and high-performance terminations, making them a standard practice in modern fiber optic deployments.
