How should network cables be arranged in a network cabinet

Properly organizing and connecting network cables in a cabinet improves performance, safety, and maintenance efficiency.

Plan and Prepare Your Network Cabinet

Start by selecting a cabinet or rack that fits your equipment and allows for future expansion. Ensure the location is well-ventilated, accessible, and away from heat or moisture. Assemble the cabinet with shelves, power strips, and cable management panels ready for installation .

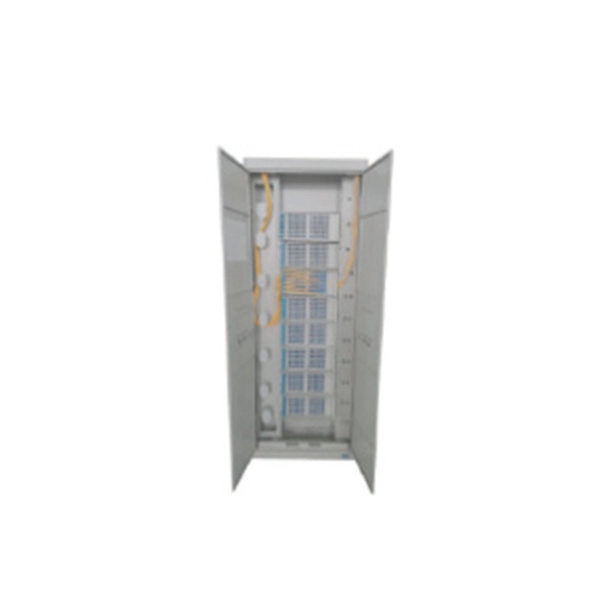

Use Patch Panels and Structured Cabling

Install a patch panel to centralize connections. This allows you to connect multiple network cables neatly and makes troubleshooting easier. Each cable should be labeled with color-coded tags or printed labels to identify its function, such as Ethernet, fiber, or power .

Implement Cable Management Tools

• Horizontal cable managers guide patch cords across the front of the rack, preventing sagging and maintaining uniform paths .
• Vertical cable managers run along the sides of the cabinet, providing channels for high-density cabling and maintaining bend-radius compliance .
• Brush panels at entry and exit points reduce dust and provide strain relief .
• Velcro or reusable cable ties bundle cables without damaging them, allowing easy adjustments .

Separate and Route Cables

• Keep power and data cables separate to prevent electromagnetic interference .
• Avoid excessive cable lengths; leave only enough slack for maintenance and movement.
• Route cables along designated paths using trays, ladders, or D-rings to maintain airflow and reduce heat buildup .

Label and Document

Label each cable clearly and maintain a network diagram or documentation. This ensures quick identification during troubleshooting or upgrades and prevents downtime .

Maintain and Monitor

Regularly inspect the cabinet to ensure cables remain organized, connections are secure, and airflow is unobstructed. Proper cable management can improve cooling efficiency by 20–30%, reduce maintenance time, and enhance network reliability . By following these steps, you can create a clean, efficient, and scalable network cabinet that simplifies maintenance, reduces errors, and supports long-term network performance.
