The function of connecting the fiber optic cable to the optical splitter
A fiber optic cable connects to an optical splitter to transmit light signals, which are then divided into multiple outputs through waveguide structures or interference effects without requiring electrical power.
Working Principle
Signal Input: The optical signal from the upstream network, such as an Optical Line Terminal (OLT) in FTTH networks, enters the splitter through a single input fiber. This fiber carries data as light pulses, which are guided into the splitter's internal structure . Signal Splitting: Inside the splitter, the light interacts with waveguides or fused fiber structures. In Fused Biconical Taper (FBT) splitters, fibers are fused and stretched to form a tapered region where light is redistributed. In Planar Lightwave Circuit (PLC) splitters, photolithographic techniques create precise waveguides on a silica substrate to divide the light evenly or according to a specific ratio . The splitter's design determines the split ratio, such as 1:2, 1:4, 1:32, or 1:64, distributing the optical power proportionally among output fibers . Signal Output: The divided light exits through multiple output fibers, each leading to a user device, Optical Network Unit (ONU), or further network components. The process is passive, meaning no electrical power is required, and the splitter can operate bidirectionally, allowing signals to combine or split as needed .
Connection Considerations
- Alignment: Precise alignment of the input fiber to the splitter's input port is critical to minimize signal loss.

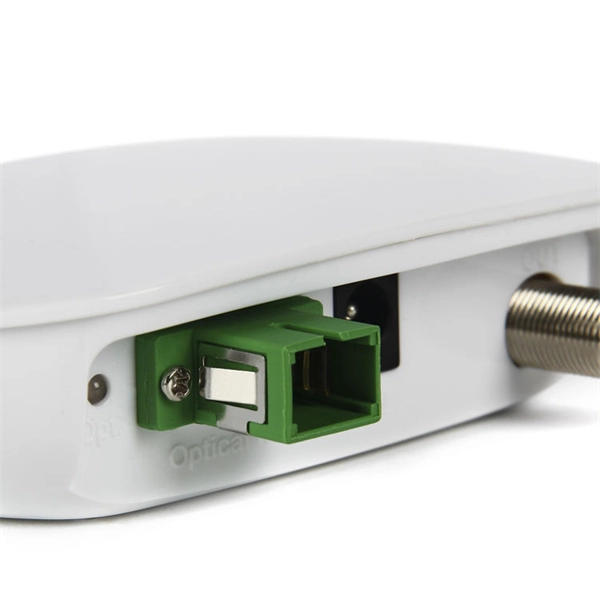

- Connector Types: Common connectors include SC, LC, or FC, depending on network standards.

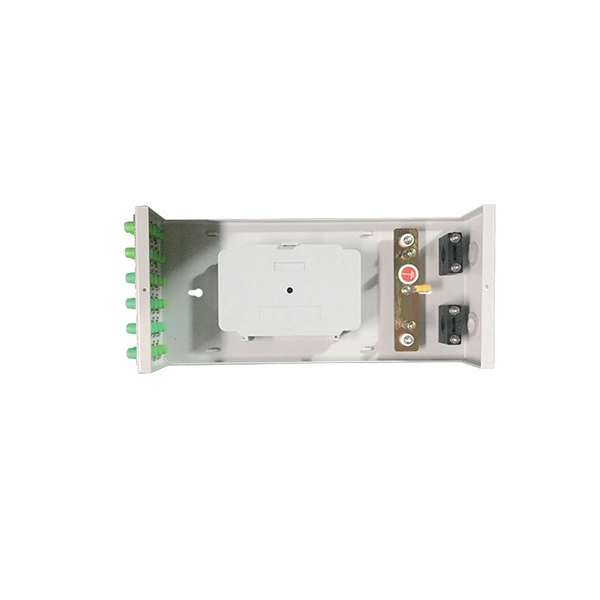

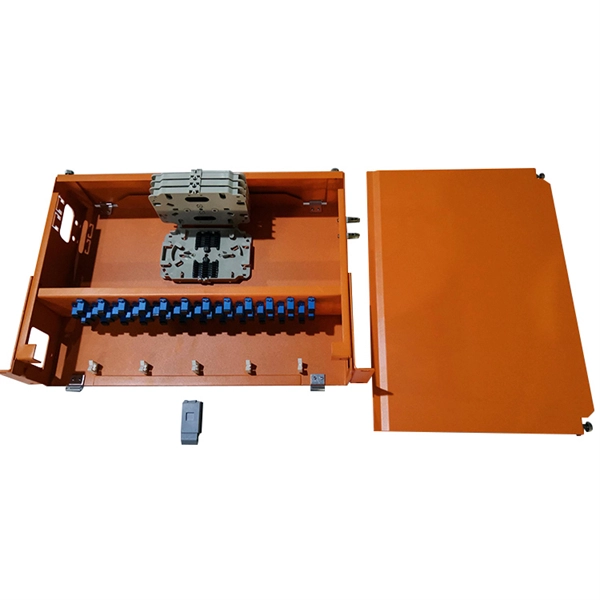

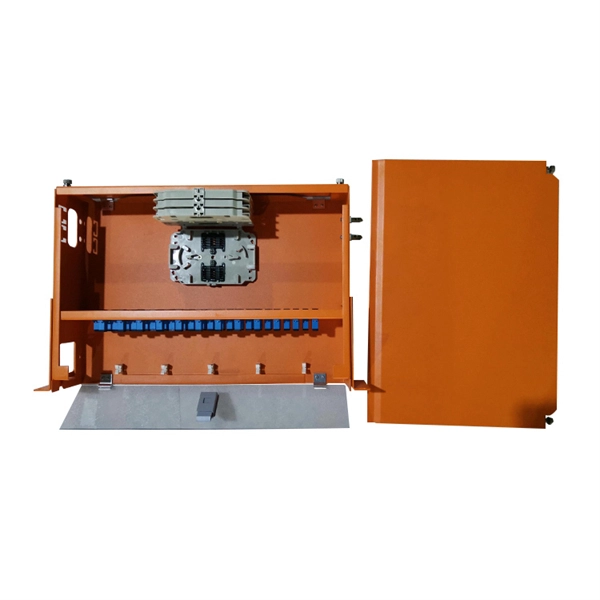

- Distribution Methods: Splitters can be centrally located in a distribution box or cascaded in multiple stages to reach a larger number of endpoints .
- Loss Management: Each split reduces optical power; careful planning ensures sufficient signal strength at all outputs.
Applications
Optical splitters are widely used in Passive Optical Networks (PONs), including FTTH, GPON, and EPON, to efficiently share a single fiber among multiple subscribers without active electronics . They enable cost-effective network expansion and flexible signal distribution. By understanding these principles, technicians can ensure proper fiber-to-splitter connections, maintain signal integrity, and optimize network performance.
