How to lay fiber optic cables in walls

Laying fiber optic cables in walls requires careful planning, protective conduit use, and gentle handling to prevent damage and signal loss.

Planning the Route

Start by determining the final location of your Optical Network Terminal (ONT) or network equipment. Map the pathway through walls, basements, attics, or existing conduits, aiming for the shortest and straightest path to minimize bends and stress points on the fiber . Avoid areas with extreme temperatures, high foot traffic, or sharp edges that could damage the cable jacket .

Selecting the Right Cable

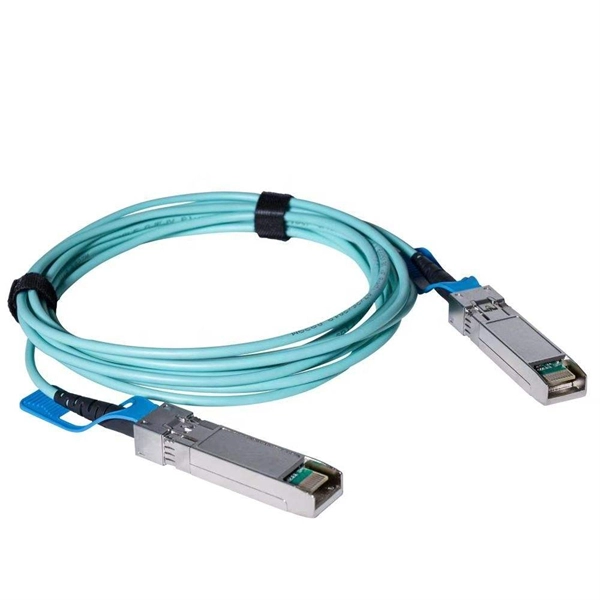

For indoor runs, use plenum- or riser-rated fiber optic cables. Single-mode fiber (OS2) is preferred for long distances and future-proofing, while multimode fiber (OM3/OM4) is suitable for shorter runs . Pre-terminated cables with connectors like SC/APC or LC simplify installation and reduce the risk of splicing errors .

Using Conduits and Protection

Run the fiber through flexible low-voltage conduit or innerduct when passing through walls or high-traffic areas. This protects the cable from accidental damage, pests, and future renovations . Ensure the conduit is compatible with the environment, such as UV-resistant for exposed sections.

Pulling the Cable

Use fiberglass fish tape or a pulling grip attached to the cable's strength members, not the fiber itself, to avoid stretching or microbends . Apply a fiber-compatible pulling lubricant for long runs or multiple bends. Maintain the minimum bend radius (typically ten times the cable diameter or at least 1.5 inches for indoor patch cables) to prevent macrobends and signal loss .

Securing the Cable

After routing, secure the cable with hook-and-loop fasteners or soft Velcro ties. Avoid plastic zip ties, which can crush the cable and degrade performance . Leave slack loops at termination points for future adjustments.

Termination and Testing

Connect the fiber to your ONT or patch panel using the pre-terminated connectors. Protect the connector ends during pulling with a pulling boot or tape to prevent contamination or damage . Once installed, test the network with an optical power meter or Visual Fault Locator to ensure proper signal transmission .

Safety Considerations

Always wear safety glasses to protect against stray glass shards. Handle fibers gently, and follow manufacturer specifications for bend radius and pulling tension . Ensure compliance with local building codes and fire-stop requirements when penetrating walls . By following these steps, you can safely and effectively lay fiber optic cables in walls, ensuring long-term performance and minimal signal loss.
